Tree-Grass ecosystem analysis#
License: CC-BY-4.0
Github: BenjMy/centum
Subject: Tutorial
Authors:
Benjamin Mary
Email: benjamin.mary@ica.csic.es
ORCID: 0000-0001-7199-2885
Affiliation: ICA-CSIC
Date: 2025/01/10
Note
Hypothesis Irrigated agricultural areas can be distinguished from adjacent agricultural parcels or natural areas through a sudden increase in actual evapotranspiration which cannot be explained by other factors (e.g. change in weather or vegetation cover).
Important
For the delineation we will use two types of datasets:
Earth Observation induced actual ET (calculated from an energy balance model): those are 3d raster datasets(x,y,time);
Only when dealing with real datasets: irrigation district shapefiles
In order to make calculation we will use the xarray datarray library. This has the advantage to allow us to read directly netcdf file format a standart for large raster images processing/storing.
In the following we use a synthetic dataset that describe a rain event at day 3.
import pooch
import xarray as xr
import numpy as np
import matplotlib.pyplot as plt
import geopandas as gpd
from centum.irrigation_district import IrrigationDistrict
pooch_Majadas = pooch.create(
path=pooch.os_cache("Majadas_project"),
base_url="https://github.com/BenjMy/test_Majadas_centum_dataset/raw/refs/heads/main/",
registry={
"20200403_LEVEL2_ECMWF_TPday.tif": None,
"ETa_Majadas.netcdf": None,
"ETp_Majadas.netcdf": None,
"CLC_Majadas_clipped.shp": None,
"CLC_Majadas_clipped.shx": None,
"CLC_Majadas_clipped.dbf": None,
},
)
Majadas_ETa_dataset = pooch_Majadas.fetch('ETa_Majadas.netcdf')
Majadas_ETp_dataset = pooch_Majadas.fetch('ETp_Majadas.netcdf')
Majadas_CLC_shapefile = pooch_Majadas.fetch('CLC_Majadas_clipped.shp')
Majadas_CLC_shapefile = pooch_Majadas.fetch('CLC_Majadas_clipped.dbf')
Majadas_CLC_shx = pooch_Majadas.fetch('CLC_Majadas_clipped.shx')
ETa_ds = xr.load_dataset(Majadas_ETa_dataset)
ETa_ds = ETa_ds.rename({"__xarray_dataarray_variable__": "ETa"}) # Rename the main variable to 'ETa'
ETp_ds = xr.load_dataset(Majadas_ETp_dataset)
ETp_ds = ETp_ds.rename({"__xarray_dataarray_variable__": "ETp"}) # Rename the main variable to 'ETa'
CLC = gpd.read_file(Majadas_CLC_shapefile) # Load the CLC dataset
ETa_ds = ETa_ds
Downloading file 'ETa_Majadas.netcdf' from 'https://github.com/BenjMy/test_Majadas_centum_dataset/raw/refs/heads/main/ETa_Majadas.netcdf' to '/home/runner/.cache/Majadas_project'.
Downloading file 'ETp_Majadas.netcdf' from 'https://github.com/BenjMy/test_Majadas_centum_dataset/raw/refs/heads/main/ETp_Majadas.netcdf' to '/home/runner/.cache/Majadas_project'.
Downloading file 'CLC_Majadas_clipped.shp' from 'https://github.com/BenjMy/test_Majadas_centum_dataset/raw/refs/heads/main/CLC_Majadas_clipped.shp' to '/home/runner/.cache/Majadas_project'.
Downloading file 'CLC_Majadas_clipped.dbf' from 'https://github.com/BenjMy/test_Majadas_centum_dataset/raw/refs/heads/main/CLC_Majadas_clipped.dbf' to '/home/runner/.cache/Majadas_project'.
Downloading file 'CLC_Majadas_clipped.shx' from 'https://github.com/BenjMy/test_Majadas_centum_dataset/raw/refs/heads/main/CLC_Majadas_clipped.shx' to '/home/runner/.cache/Majadas_project'.
from pyproj import CRS
crs = CRS.from_wkt('PROJCS["unknown",GEOGCS["WGS 84",DATUM["World Geodetic System 1984",SPHEROID["WGS 84",6378137,298.257223563]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]]],PROJECTION["Azimuthal_Equidistant"],PARAMETER["latitude_of_center",53],PARAMETER["longitude_of_center",24],PARAMETER["false_easting",5837287.81977],PARAMETER["false_northing",2121415.69617],UNIT["metre",1,AUTHORITY["EPSG","9001"]],AXIS["Easting",EAST],AXIS["Northing",NORTH]]')
ETa_ds.rio.write_crs(crs.to_wkt(), inplace=True)
<xarray.Dataset> Size: 23MB
Dimensions: (band: 1, x: 54, y: 56, time: 1911)
Coordinates:
* band (band) int64 8B 1
* x (x) float64 432B 3.324e+06 3.325e+06 ... 3.34e+06 3.34e+06
* y (y) float64 448B 1.179e+06 1.178e+06 ... 1.162e+06 1.162e+06
spatial_ref int64 8B 0
* time (time) datetime64[ns] 15kB 2021-01-14 2021-03-10 ... 2021-04-17
Data variables:
ETa (time, band, y, x) float32 23MB 1.455 0.4689 ... 2.572 2.486# Ensure the CRS matches
CLC.set_crs(crs.to_wkt(), inplace=True)

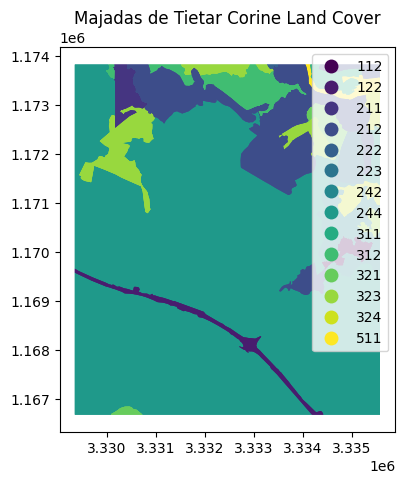

fig, ax = plt.subplots(1, 1, figsize=(10, 5))
CLC.plot(column='Code_18', ax=ax, legend=True, cmap='viridis')
ax.set_title("Majadas de Tietar Corine Land Cover")
plt.show()
GeoAnalysis = IrrigationDistrict(Majadas_CLC_shapefile)
gdf_CLC = GeoAnalysis.load_shapefile()
resolution = 10
bounds = gdf_CLC.total_bounds # (minx, miny, maxx, maxy)
gdf_CLC['index'] = gdf_CLC['Code_18']
clc_rxr = GeoAnalysis.convert_to_rioxarray(gdf=gdf_CLC,
variable="index",
resolution=resolution,
bounds=bounds
)
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Cell In[5], line 6
4 bounds = gdf_CLC.total_bounds # (minx, miny, maxx, maxy)
5 gdf_CLC['index'] = gdf_CLC['Code_18']
----> 6 clc_rxr = GeoAnalysis.convert_to_rioxarray(gdf=gdf_CLC,
7 variable="index",
8 resolution=resolution,
9 bounds=bounds
10 )
AttributeError: 'IrrigationDistrict' object has no attribute 'convert_to_rioxarray'
clc_rxr.max()
<xarray.DataArray ()> Size: 4B array(0, dtype=int32)
gdf_CLC['index']
0 244
1 244
2 244
3 511
4 511
...
70 311
71 311
72 311
73 323
74 323
Name: index, Length: 75, dtype: object

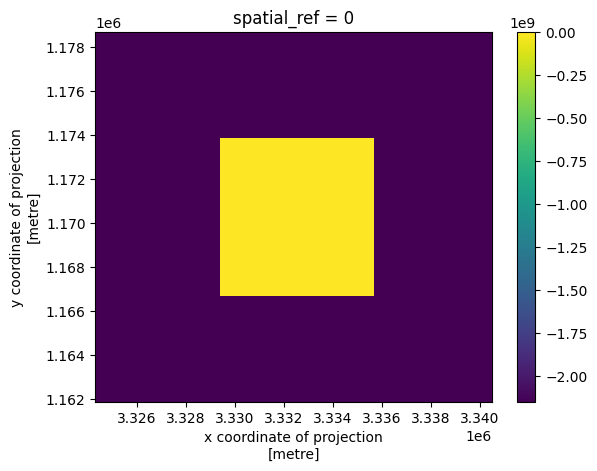

clc_rxr.plot.imshow()
<matplotlib.image.AxesImage at 0x7f4411f3d2b0>
clc_rxr = clc_rxr.rio.write_crs(crs.to_wkt())
ETa_ds = ETa_ds.rio.write_crs(crs.to_wkt())
clc_rxr = clc_rxr.rio.reproject_match(ETa_ds)

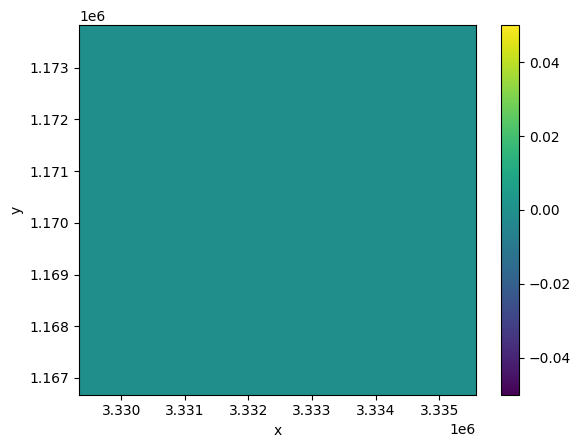

clc_rxr.plot.imshow()
<matplotlib.image.AxesImage at 0x7f4411e75d90>
results = []
# Loop through each land cover type in the GeoDataFrame
for land_cover, subset in CLC.groupby("Code_18"):
try:
# Ensure subset.geometry is a single geometry or a list of geometries
combined_geometry = subset.geometry.unary_union
# Clip the dataset using the combined geometry
mask = ETa_ds['ETa'].rio.clip([combined_geometry], crs=subset.crs, drop=True)
# Perform operations with the clipped dataset (e.g., calculate mean)
spatial_mean = mask.mean(dim=["x", "y"], skipna=True)
# Store the result
results.append({"Code_18": land_cover, "ETa_mean": spatial_mean})
except:
pass
import pandas as pd
land_cover_means = pd.DataFrame(results)
fig, ax = plt.subplots(1, 1, figsize=(10, 5))
mask.isel.plot(column='Code_18', ax=ax, legend=True, cmap='viridis')
ax.set_title("Majadas de Tietar Corine Land Cover")
plt.show()
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Cell In[12], line 2
1 fig, ax = plt.subplots(1, 1, figsize=(10, 5))
----> 2 mask.isel.plot(column='Code_18', ax=ax, legend=True, cmap='viridis')
3 ax.set_title("Majadas de Tietar Corine Land Cover")
4 plt.show()
AttributeError: 'function' object has no attribute 'plot'
land_cover_means.set_index('Code_18',inplace=True)
mask.isel(band=0).isel(time=slice(0,8)).plot.imshow(x="x", y="y",
col="time",
col_wrap=4,
)
# Agricultural areas
Agricultural_areas = land_cover_means.loc[land_cover_means.index.astype(str).str.startswith('1')]
Forest_areas = land_cover_means.loc[land_cover_means.index.astype(str).str.startswith('2')]
fig, ax = plt.subplots()
for i in range(len(Agricultural_areas.index)):
Agricultural_areas.iloc[i]['ETa_mean'].isel(band=0).plot.scatter(x='time',ax=ax,
color='r',
alpha=0.2
)
for i in range(len(Agricultural_areas.index)):
Forest_areas.iloc[i]['ETa_mean'].isel(band=0).plot.scatter(x='time',
ax=ax,
color='green',
alpha=0.2
)
# Ensure the CRS matches
CLC.set_crs(crs.to_wkt(), inplace=True)
# Loop through unique land cover types to create masks and calculate means
results = []
for land_cover, subset in CLC.groupby("Code_18"):
# Clip the ETa data to the current land cover geometry
mask = ETa_ds.rio.clip(subset.geometry, crs=subset.crs, drop=True)
# Calculate the mean ETa for the current land cover type
spatial_mean = mask.mean().item()
# Store the result
results.append({"Code_18": land_cover, "ETa_mean": spatial_mean})
# Convert the results into a DataFrame for easier viewing
import pandas as pd
land_cover_means = pd.DataFrame(results)
print(ETa_ds['ETa'].time)
print(ETp_ds['ETp'].time)
ETa_ds['ETa'].isel(band=0).isel(time=slice(0,8)).time
ETp_ds['ETp'].isel(band=0).isel(time=slice(0,8)).time
fig, ax = plt.subplots(1, 1, figsize=(10, 5))
CLC.plot(column='Code_18', ax=ax, legend=True, cmap='viridis')
ax.set_title("Majadas de Tietar Corine Land Cover")
plt.show()
Show Earth Observation time serie to analyse
ETp_ds['ETp'].isel(band=0).isel(time=slice(0,8)).plot.imshow(x="x", y="y",
col="time",
col_wrap=4,
)
ETa_ds['ETa'].isel(band=0).isel(time=slice(0,8)).plot.imshow(x="x", y="y",
col="time",
col_wrap=4,
)
