Mapping atmbc from coarse EO#
create a CATHY object
create a CATHY mesh from a catchment DEM from a file .adf containing no values -9999
wrap the mesh properties (from hapin file) to an xarray dataset
Estimated time to run the notebook = 5min
# !! run preprocessor change the DEM shape !
# dtm_13 does not have the same shape anymore!
import os
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pyCATHY.meshtools as mt
from pyCATHY import cathy_tools
from pyCATHY.importers import cathy_inputs as in_CT
from pyCATHY.importers import cathy_outputs as out_CT
from pyCATHY.plotters import cathy_plots as cplt
import rioxarray
import pyvista as pv
import xarray as xr
path2prj = "../EOdata/" # add your local path here
simu = cathy_tools.CATHY(dirName=path2prj,
prj_name="mapping_atmbc_from_coarse_EO_dataset"
)
rootpath = os.path.join(simu.workdir + simu.project_name)
# Path to the directory containing the .adf file (not the file itself)
adf_folder = "../../data/dtmplot1/"
# Open the raster (typically named 'hdr.adf', but you only need the folder)
raster_DEM = rioxarray.open_rasterio(adf_folder, masked=True).isel(band=0)
# Create a mask of valid (non-NaN) data
valid_mask = ~np.isnan(raster_DEM)
# Apply the mask to get valid coordinates
valid_x = raster_DEM['x'].where(valid_mask.any(dim='y'), drop=True)
valid_y = raster_DEM['y'].where(valid_mask.any(dim='x'), drop=True)
# Get min and max valid coordinates
min_lon, max_lon = float(valid_x.min()), float(valid_x.max())
min_lat, max_lat = float(valid_y.min()), float(valid_y.max())
raster_DEM_masked = raster_DEM.where(
(raster_DEM['x'] >= min_lon) & (raster_DEM['x'] <= max_lon), drop=True
).where(
(raster_DEM['y'] >= min_lat) & (raster_DEM['y'] <= max_lat), drop=True
)
raster_DEM_masked = np.where(np.isnan(raster_DEM_masked), -9999, raster_DEM_masked)
np.shape(raster_DEM_masked)
np.shape(raster_DEM)
🏁 Initiate CATHY object
(161, 283)

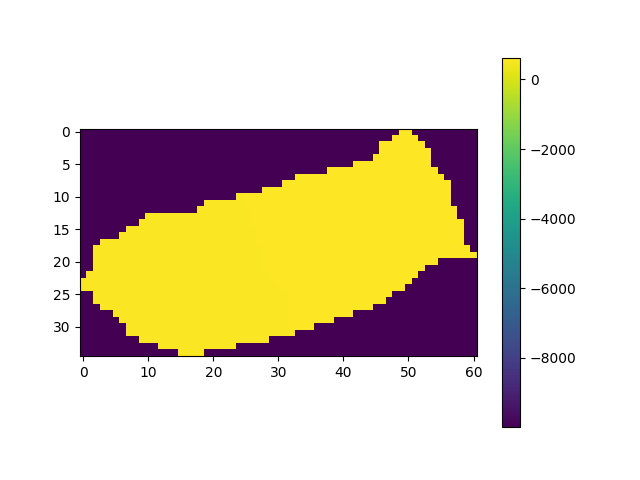

fig, ax = plt.subplots(1)
img = ax.imshow(raster_DEM_masked)
plt.colorbar(img)
simu.update_prepo_inputs(
DEM=raster_DEM_masked,
delta_x=5,
delta_y=5,
ivert=1,
)
🔄 Update hap.in file
🔄 Update dem_parameters file
🔄 Update dtm_13 file
🔄 update zone file
🔄 Update dem_parameters file
🔄 Update parm file
🔄 Update dem_parameters file
simu.create_mesh_vtk(verbose=True)
🍳 gfortran compilation
👟 Run preprocessor
wbb...
searching the dtm_13.val input file...
assigned nodata value = -9999.0000000000000
number of processed cells = 1174
...wbb completed
rn...
csort I...
...completed
depit...
dem modifications = 0
dem modifications = 0 (total)
...completed
csort II...
...completed
cca...
contour curvature threshold value = 9.99999996E+11
...completed
smean...
mean (min,max) facet slope = 0.216937334 ( 0.012000000, 0.760631317)
...completed
dsf...
weight w_1 less than 1.0E-06: set w_1 = 0 and w_2 = 1
weight w_1 less than 1.0E-06: set w_1 = 0 and w_2 = 1
the drainage direction of the outlet cell ( 2 ) is used
...completed
hg...
...completed
saving the data in the basin_b/basin_i files...
...rn completed
mrbb...
Select the header type:
0) None
1) ESRI ascii file
2) GRASS ascii file
(Ctrl C to exit)
->
Select the nodata value:
(Ctrl C to exit)
->
Select the pointer system:
1) HAP system
2) Arc/Gis system
(Ctrl C to exit)
-> ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dem file
min value = 0.567960E+03
max value = 0.628820E+03
number of cells = 1174
mean value = 0.592434E+03
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
lakes_map file
min value = 0
max value = 0
number of cells = 1174
mean value = 0.000000
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
zone file
min value = 1
max value = 1
number of cells = 1174
mean value = 1.000000
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_w_1 file
min value = 0.000000E+00
max value = 0.100000E+01
number of cells = 1174
mean value = 0.558963E+00
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_w_2 file
min value = 0.000000E+00
max value = 0.100000E+01
number of cells = 1174
mean value = 0.441037E+00
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_p_outflow_1 file
min value = 2
max value = 6
number of cells = 1174
mean value = 2.272573
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_p_outflow_2 file
min value = 0
max value = 9
number of cells = 1174
mean value = 1.447189
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
A_inflow file
min value = 0.000000000000E+00
max value = 0.293249992721E+05
number of cells = 1174
mean value = 0.770825256348E+03
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_local_slope_1 file
min value =-0.234000E+00
max value = 0.750000E+00
number of cells = 1174
mean value = 0.189089E+00
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_local_slope_2 file
min value =-0.189505E+00
max value = 0.692965E+00
number of cells = 1174
mean value = 0.173164E+00
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_epl_1 file
min value = 0.000000E+00
max value = 0.500000E+01
number of cells = 1174
mean value = 0.469762E+01
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_epl_2 file
min value = 0.000000E+00
max value = 0.707107E+01
number of cells = 1174
mean value = 0.637239E+01
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_kSs1_sf_1 file
min value = 0.000000E+00
max value = 0.665000E+02
number of cells = 1174
mean value = 0.288060E+02
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_kSs1_sf_2 file
min value = 0.000000E+00
max value = 0.665000E+02
number of cells = 1174
mean value = 0.274720E+02
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_Ws1_sf file
min value = 0.000000E+00
max value = 0.952684E+01
number of cells = 1174
mean value = 0.141419E+01
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_Ws1_sf_2 file
min value = 0.000000E+00
max value = 0.667605E+01
number of cells = 1174
mean value = 0.126586E+01
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_b1_sf file
min value = 0.000000E+00
max value = 0.260000E+00
number of cells = 1174
mean value = 0.538160E-01
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_y1_sf file
min value = 0.000000E+00
max value = 0.000000E+00
number of cells = 1174
mean value = 0.000000E+00
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_hcID file
min value = 0
max value = 1
number of cells = 1174
mean value = 0.206985
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_q_output file
min value = 0
max value = 0
number of cells = 1174
mean value = 0.000000
writing the output file...
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
dtm_nrc file
min value = 0.100000E+01
max value = 0.100000E+02
number of cells = 1174
mean value = 0.813714E+01
writing the output file...
...mrbb completed
bb2shp...
writing file river_net.shp
Note: The following floating-point exceptions are signalling:
IEEE_UNDERFLOW_FLAG IEEE_DENORMAL
🔄 Update parm file
🛠 Recompile src files [7s]
🍳 gfortran compilation [16s]
❌ Linker error:
/usr/bin/ld: cannot find -llapack: No such file or directory
/usr/bin/ld: cannot find -lblas: No such file or directory
collect2: error: ld returned 1 exit status
👟 Run processor
b''

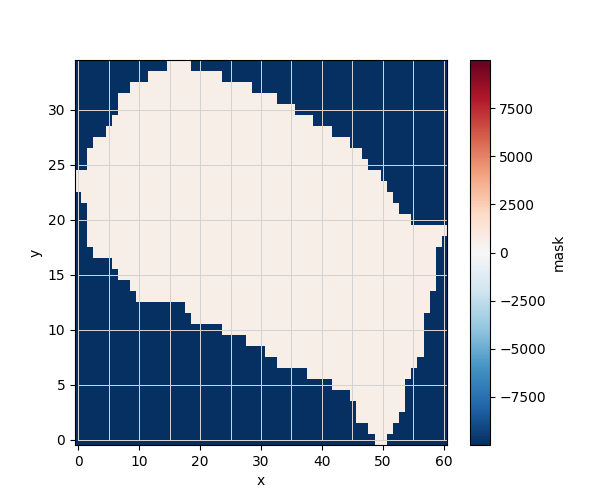

ds_mesh = mt.build_mesh_dataset(simu,
raster_DEM_masked=raster_DEM_masked,
plot_grid=True
)
def create_et_dataset(simu, ETa_2D=None, ETp_2D=None, start_date="2026-02-01", n_days=30):
"""
Create a 3D xarray.Dataset of ETa and ETp from a simu.hapin grid.
Parameters
----------
simu : object
Simulation object with hapin attributes (delta_x, delta_y, N, M, xllcorner, yllcorner).
ETa_2D : 2D numpy array, optional
Daily ETa pattern (shape M x N). If None, a synthetic pattern will be generated.
ETp_2D : 2D numpy array, optional
Daily ETp pattern (shape M x N). If None, a synthetic pattern will be generated.
start_date : str, optional
Start date for the time axis. Default "2026-02-01".
n_days : int, optional
Number of days to generate. Default 30.
Returns
-------
ds_et : xarray.Dataset
Dataset with variables "ETa" and "ETp" (time, y, x).
"""
# Use hapin grid
hapin = simu.hapin
N = hapin["N"]
M = hapin["M"]
dx = hapin["delta_x"]
dy = hapin["delta_y"]
x0 = hapin["xllcorner"]
y0 = hapin["yllcorner"]
# Cell centers
x = x0 + (np.arange(N) + 0.5) * dx
y = y0 + (np.arange(M) + 0.5) * dy
# Create meshgrid
X, Y = np.meshgrid(x, y)
# Synthetic patterns if none provided
if ETa_2D is None:
ETa_2D = 3 + 2 * np.sin(np.pi * X / X.max()) * np.cos(np.pi * Y / Y.max())
if ETp_2D is None:
ETp_2D = 4 + 1.5 * np.sin(np.pi * X / X.max()) * np.cos(np.pi * Y / Y.max())
# Time axis
time = pd.date_range(start_date, periods=n_days, freq="D")
# Expand 2D arrays to 3D (time, y, x)
ETa_3D = np.tile(ETa_2D[None, :, :], (len(time), 1, 1))
ETp_3D = np.tile(ETp_2D[None, :, :], (len(time), 1, 1))
# Create xarray Dataset
ds_et = xr.Dataset(
data_vars={
"ETa": (("time", "y", "x"), ETa_3D),
"ETp": (("time", "y", "x"), ETp_3D),
},
coords={
"time": time,
"x": x,
"y": y,
},
attrs={
"resolution_x": dx,
"resolution_y": dy,
"xllcorner": x0,
"yllcorner": y0,
}
)
return ds_et
ds_et = create_et_dataset(simu, start_date="2026-02-01", n_days=30)
ds_et.rio.resolution()
# ds_et.rio.crs
(5.0, 5.0)
# Define coarsening factor
# Example: make resolution 2x coarser in x and y
factor_x = 5 # combine 2 grid cells along x
factor_y = 5 # combine 2 grid cells along y
# Coarsen and take mean
ds_et_coarse = ds_et.coarsen(x=factor_x, y=factor_y, boundary='trim').mean()
# Update attributes to reflect new resolution
ds_et_coarse.attrs['resolution_x'] = ds_et.attrs['resolution_x'] * factor_x
ds_et_coarse.attrs['resolution_y'] = ds_et.attrs['resolution_y'] * factor_y
# print(ds_et_coarse)
print(ds_et_coarse.rio.resolution())
(25.0, 25.0)
import xarray as xr
import numpy as np
# ds_mapped = mt.map_grid_to_mesh(ds_et_coarse, ds_mesh, variables=["ETp", "ETa"])
ds_mapped = mt.map_grid_to_mesh(ds_et, ds_mesh, variables=["ETp", "ETa"])
# ds_mapped = map_grid_to_mesh(ds_era5, ds_mesh, method="linear")
# ds_mapped = map_grid_to_mesh(ds_modis, ds_mesh, variables=["NDVI"],
# x_dim="lon", y_dim="lat")
ds_mesh_surfacenodes = ds_mapped.isel(node=slice(0,int(simu.grid3d['nnod'])))
t0 = ds_mesh_surfacenodes.isel(time=0)['ETp']
fig,ax= plt.subplots(1,2)
ds_et_coarse['ETp'].isel(time=0).plot.imshow(ax=ax[0])
sc = ax[1].scatter(t0.x, t0.y, c=t0.values, cmap='viridis', s=5)
plt.colorbar(sc, ax=ax[1], label='ETp')
ax[1].set_title(str(t0.time.values)[:10])
ax[1].set_xlabel('x'); ax[1].set_ylabel('y')
plt.show()
# Convert xarray DataArray to NumPy array
ETp_nodes = ds_mesh_surfacenodes["ETp"].values # shape: (time, node)
len(ETp_nodes)
# Reference time: first time step
t0 = ds_et.time[0].values
# Convert all times to seconds since t0
time_sec = (ds_et.time.values - t0) / np.timedelta64(1, 's') # seconds
# Add as a new coordinate if you want
ds_et = ds_et.assign_coords(time_sec=("time", time_sec))
simu.update_atmbc(HSPATM=0,
IETO=1,
time = ds_et.time_sec,
netValue = -ETp_nodes*0.001 / 86400
)
🔄 Update atmbc
🔄 Update parm file
simu.update_ic(INDP=0,pressure_head_ini=-10)
simu.update_parm(TIMPRTi=ds_et.time_sec.values,
VTKF=2
)
simu.run_processor(IPRT1=2,
DTMIN=1e-2,
DTMAX=1e2,
DELTAT=5,
TRAFLAG=0,
verbose=True)
🔄 Update ic
Single value detected for ic ==> assumming it homogeneous
🔄 Update parm file
────────────────────────── ⚠ warning messages above ⚠ ──────────────────────────
['Adjusting NPRT with respect to time of interests requested\n']
────────────────────────────────────────────────────────────────────────────────
🔄 Update parm file
🛠 Recompile src files [42s]
🍳 gfortran compilation [51s]
❌ Linker error:
/usr/bin/ld: cannot find -llapack: No such file or directory
/usr/bin/ld: cannot find -lblas: No such file or directory
collect2: error: ld returned 1 exit status
👟 Run processor
b''
Total running time of the script: (0 minutes 51.960 seconds)
